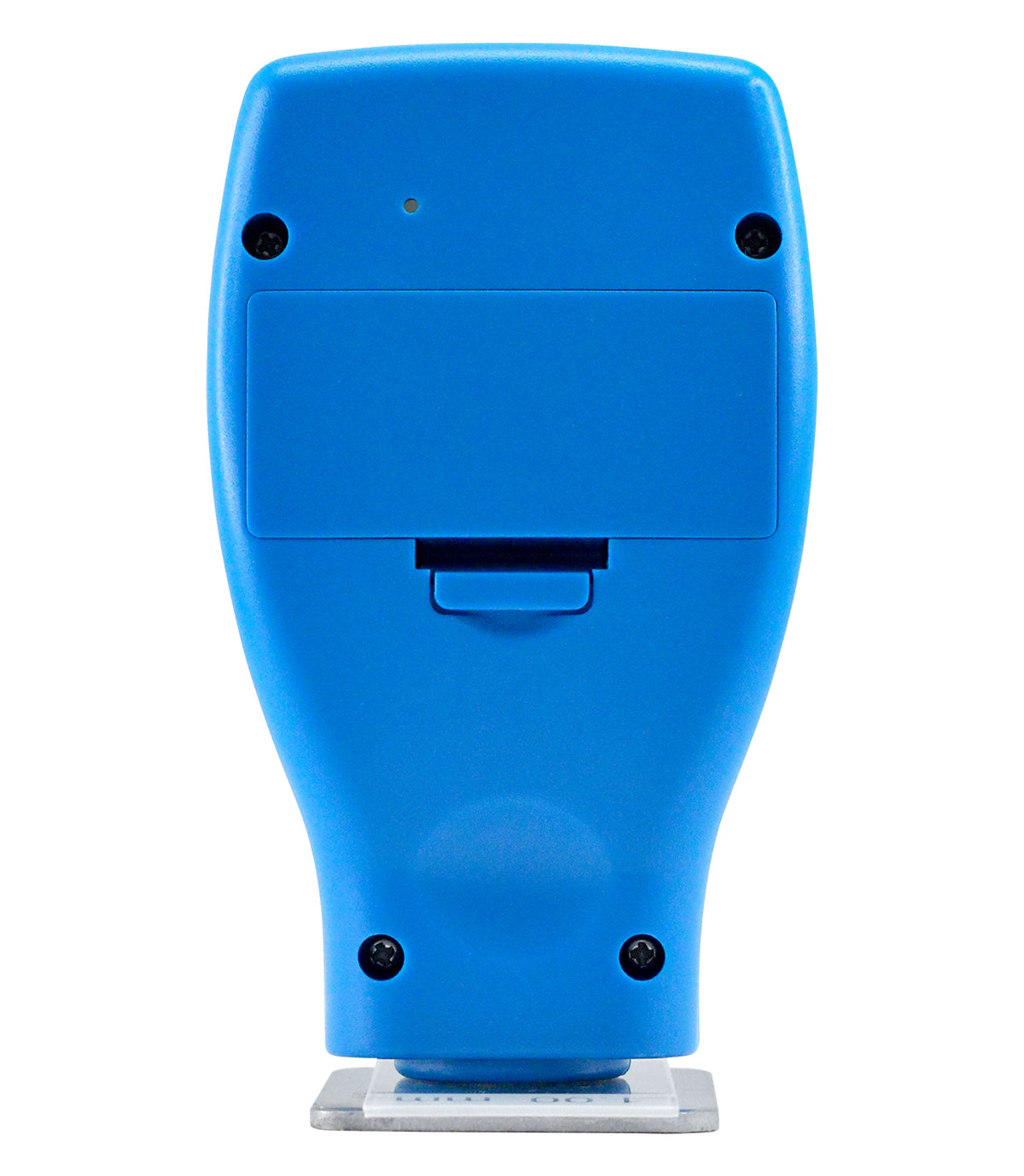

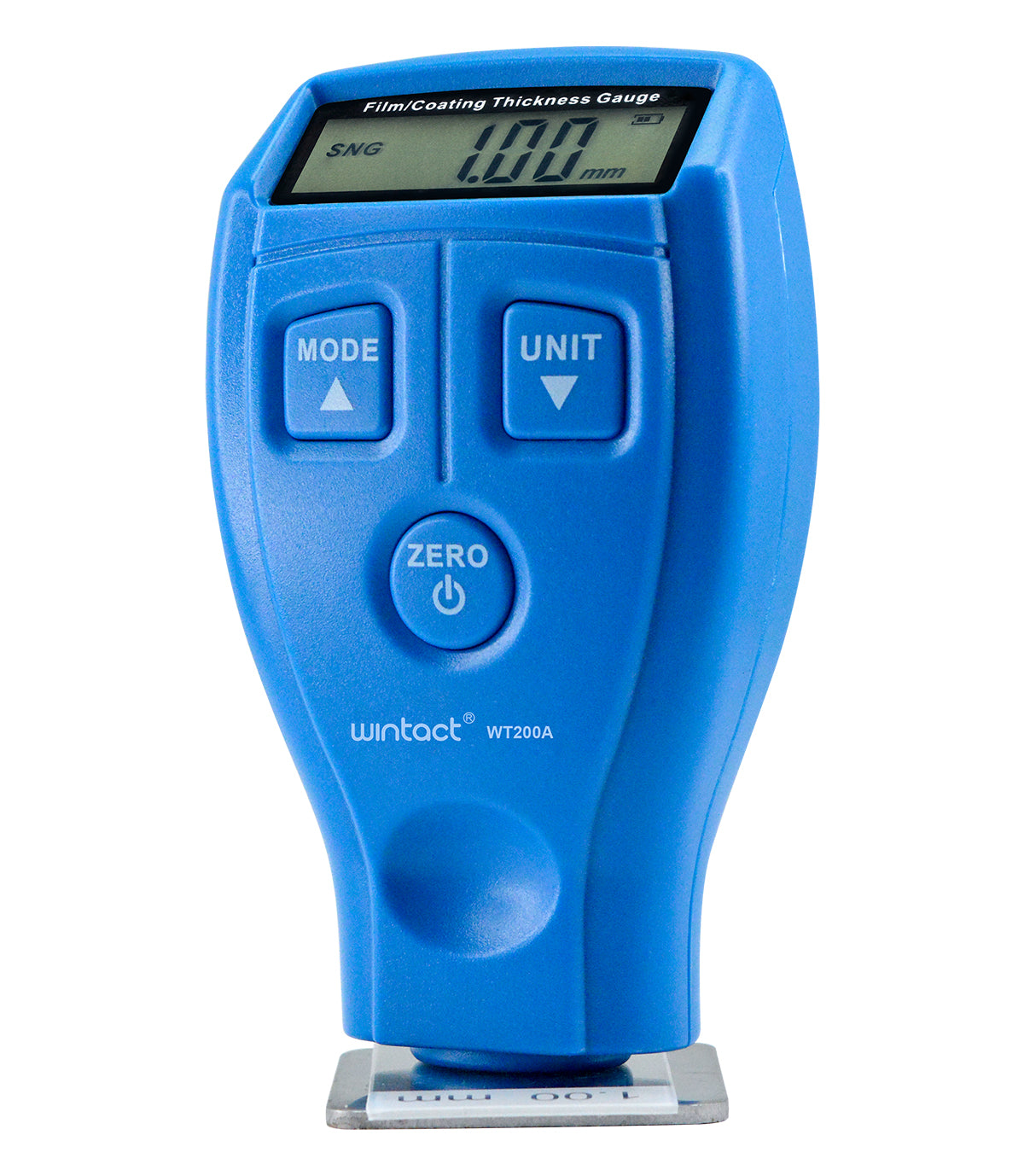

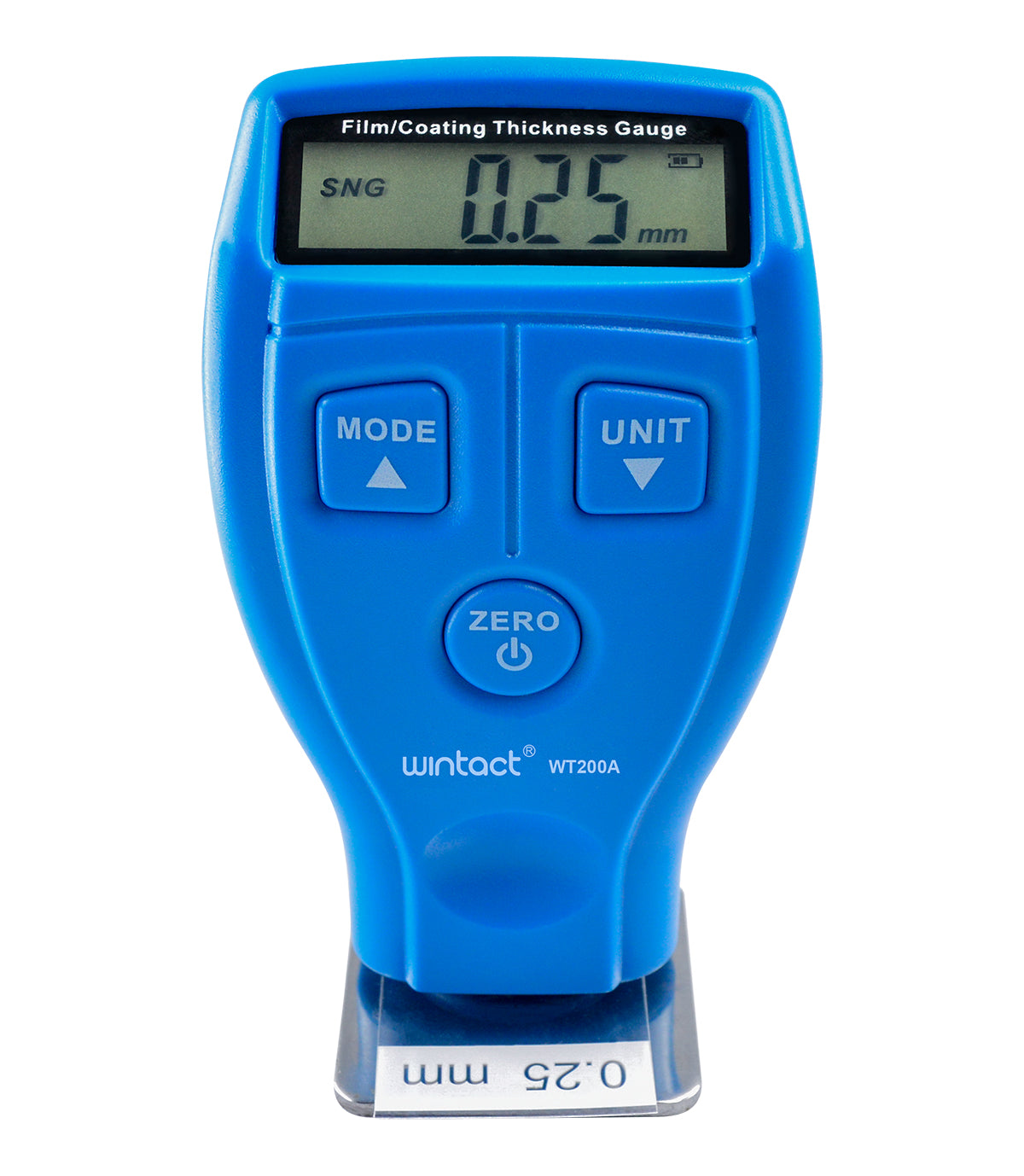

WINTACT WT200A Mini Digital Coating Film Iron Thickness Gauge Car Meter Paint Painting Tester Handheld Testing 0-1.80mm
This product is a portable coating thickness gauge, which can quickly, nondestructively, and accurately measure non-metallic coating thickness (such as paint, film, etc.) of metal substrate. It Is widely used in detection areas like manufacturing industry, Car washing industry, metal processing industry, chemical industry and commodity inspection.
Features:
1. It is a stable, safe and reliable coating thickness gauge for measuring nonmetal coating on metal surface.
2. Three calibration functions:zero calibration, basic calibration, two point calibration.
3. Unit switchable:mm/mile units of measurement optional.
4. Three measurement ways:single measurement, continuous measurement, different value measurement.
5. More advantage:auto power off, battery volume display, quick response, portable design, high accuracy.
Description:
1. Lightweight and portable, easy to use and carry.
2. Two measuring modes:car and user.
3. This product has seen wide application in manufacture, metal working, chemical industry, commodity inspection and other fields
Specification:
Brand: WINTACT
Model: WT200A
Colour: Blue
Measurement Type: Nonmetal coating on metal surface
Measurement Range: 0~1.80mm/0~71.0 mil
Accuracy: ±0.1mm
Resolution:
Car mode:0.05mm/2mile
User mode: 0.01mm/1mile
Minimum base diameter: 50mm
Minimum thickness of substrate: 0.5mm
Battery volume display: Yes
Zero Calibration: Yes
Basic Calibration: Yes
Two Point Calibration: Yes
Single/Continuous/Different value Measurement: Yes
Auto Power Off: Yes
Unit Selection: Yes
Operating Condition: 18°~30° 10-80%RH
Battery: 2 x 1.5V AAA battery
Item Weight: 57g
Item Size: 105 x 60 x 28mm
Package Information:
Package Size: 140 x 80 x 50mm/5.51 x 3.15 x 1.97in
Package Weight:76g/2.67oz
Polybag Package
Package Included:
1 x Thickness Meter
6 x Plastic Shims
1 x User manual
